* 注意1：在ROOT中，直方图默认与当前目录关联（例如TFile）。当关闭TFile时，与其关联的所有直方图都会被删除，如果之后需要调用的话就会产生无效的内存访问。这可能是我在运行中偶尔出现 crash 的原因。
* 注意2：在所有部分，我只计算了区间（45,80）的卡方/自由度。
*/
void task1_5() {
auto start = std::chrono::high_resolution_clock::now(); // 记录程序运行时间
TVirtualFitter::SetDefaultFitter("Minuit"); // **在上一次程序运行中发现无法使用 Minuit 改用 Minuit2，这一次发现无法使用 Minuit2 改用 Minuit。由于每个A_B都要提示一次（1152次），于是预先在这里声明。但是为什么？**
TFile *file = TFile:: Open("va.root", "READ");
TFile *outFile = new TFile("fit_results.root","RECREATE");
std::ofstream outputFile("chi2Ndf_and_gainCoefficients.txt");
TH2D *gainMap = new TH2D("gainMap", "GainCoefficients; A; B", 192, 0, 192, 6, 0, 6);
TH2D *chi2Map = new TH2D("chi2Map", "ChiSquared/NDF; A; B", 192, 0, 192, 6, 0, 6);
double totalMPV = 0; // 用于累加MPV
int numDetectors = 0; // 探测器数量
std::vector<double> mpvList; // 每个探测器的MPV
std::vector<TH1D*> correctedHists; // 输出的（校正后的）值方图
std::vector<TH1D*> originalHists; // 由于出现了程序崩溃，存储一个原始直方图。应该是程序开头的注释中提到的问题
int lefFit = 0, riFit = 0, lefMergedFit = 0, riMergedFit = 0; // 拟合区间
lefFit = 45;
riFit = 75;
lefMergedFit = 45;
riMergedFit = 75;
for (int A=0; A < 192; ++A){
for (int B=0; B < 6; ++B){
TString histName = TString::Format("%d_%d", A, B);
TH1D *hist = (TH1D*)file -> Get(histName);
TH1D *histClone = (TH1D*)hist -> Clone();
histClone -> SetDirectory(0); // 克隆后解除关联（也是为了防止读取空内存）
histClone -> Sumw2(); // 计算误差，方便后续误差条的显示（虽然并不明显？）
originalHists.push_back((TH1D*)hist -> Clone()); // 再次存储一个直方图
TF1 *landauGausFit = new TF1("landauGausFit", langaufun, lefFit, riFit, 4); // 选择区间的原因在文章中有说明
landauGausFit -> SetParameters(1.8, 50, 50000, 3);
landauGausFit -> SetParNames("Width", "MP", "Area", "Sigma");
landauGausFit -> SetNpx(1000); // 由于初步拟合时发现峰值附近的拟合函数看起来太尖锐，手动增加绘制精度
hist -> Fit(landauGausFit, "Q");
double gainCoefficient = landauGausFit -> GetMaximumX(lefFit, riFit);
double chi2 = 0;
int ndf = 0;
for (int bin = hist -> FindBin(45); bin <= hist -> FindBin(90); bin ++){
double observed = hist -> GetBinContent(bin);
double expected = landauGausFit -> Eval(hist ->GetBinCenter(bin));
if (expected > 0){
chi2 += (observed -expected) * (observed - expected)/ expected;
ndf++;
}
}
ndf -= 4;
double chi2NDF = chi2 / ndf;
gainMap -> SetBinContent(A + 1, B + 1, gainCoefficient);
chi2Map -> SetBinContent(A + 1, B + 1, chi2NDF);
outputFile << A << "_" << B << " " << chi2NDF << " " << gainCoefficient << "\n";
mpvList.push_back(gainCoefficient);
totalMPV += gainCoefficient;
numDetectors ++;
hist -> Write();
}
}
double targetMPV = totalMPV / numDetectors; // 计算平均值用来对齐
for (int A = 0; A < 192; ++A){
for (int B = 0; B < 6; ++B){
TH1D *hist = originalHists[A * 6 + B];
double gainCoefficient = mpvList[A * 6 + B];
double correctionFactor = targetMPV / gainCoefficient; // 定义一个修正（对齐）因子
TH1D * correctedHist = (TH1D*)hist -> Clone(TString::Format("corrected_%d_%d", A, B));
correctedHist -> SetDirectory(0); // 也是解除关联
correctedHist -> Sumw2();
correctedHist -> Scale(correctionFactor);
correctedHists.push_back(correctedHist);
correctedHist -> Write();
}
}
// 这是一个用于合并的直方图
TH1D *mergedHist = (TH1D*)correctedHists[0] -> Clone("merged_hist");
mergedHist -> Reset();
mergedHist -> SetDirectory(0); // 也是解除关联
mergedHist -> Sumw2(); // 计算误差
for (size_t i = 0; i < correctedHists.size(); ++i){
mergedHist -> Add(correctedHists[i]);
}
double bestChi2NDF = 1e6;
int bestLefFit = 40, bestRiFit = 75;
for (double lower = 40; lower <= 48; lower += 0.5) {
for (double upper = 60; upper <= 75; upper += 0.5) {
TF1 *tempFit = new TF1("tempFit", langaufun, lower, upper, 4);
tempFit->SetParameters(1.8, 50, 50000, 3);
tempFit->SetParNames("Width", "MP", "Area", "Sigma");
tempFit->SetNpx(1000);
mergedHist->Fit(tempFit, "Q");
double tempChi2 = 0;
int tempNDF = 0;
for (int bin = mergedHist->FindBin(45); bin <= mergedHist->FindBin(80); bin++) {
double observed = mergedHist->GetBinContent(bin);
double expected = tempFit->Eval(mergedHist->GetBinCenter(bin));
if (expected > 0) {
tempChi2 += (observed - expected) * (observed - expected) / expected;
tempNDF++;
}
}
tempNDF -= 4;
double tempChi2NDF = tempChi2 / tempNDF;
// 判断是否为最优
if (tempChi2NDF < bestChi2NDF) {
bestChi2NDF = tempChi2NDF;
bestLefFit = lower;
bestRiFit = upper;
}
delete tempFit;
}
}
TF1 *mergedFit = new TF1("mergedFit", langaufun, bestLefFit, bestRiFit, 4);
mergedFit -> SetParameters(1.8, 50, 50000, 3);
mergedFit -> SetParNames("Width", "MP", "Area", "Sigma");
mergedFit -> SetNpx(1000);
mergedHist -> Fit(mergedFit, "Q");
double mergedChi2 = 0;
int mergedNDF = 0;
for (int bin = mergedHist -> FindBin(45); bin <= mergedHist -> FindBin(80);bin ++){
double observed = mergedHist -> GetBinContent(bin);
double expected = mergedFit -> Eval(mergedHist -> GetBinCenter(bin));
if (expected > 0){
mergedChi2 += (observed - expected) * (observed - expected) / expected;
mergedNDF++;
}
}
mergedNDF -= 4;
double mergedChi2NDF = mergedChi2 / mergedNDF;
mergedFit -> Write();
mergedHist -> Write();
gainMap -> Write();
chi2Map -> Write();
file -> Close();
outFile -> Close();
outputFile.close();
TFile *inFile = TFile::Open("fit_results.root", "READ");

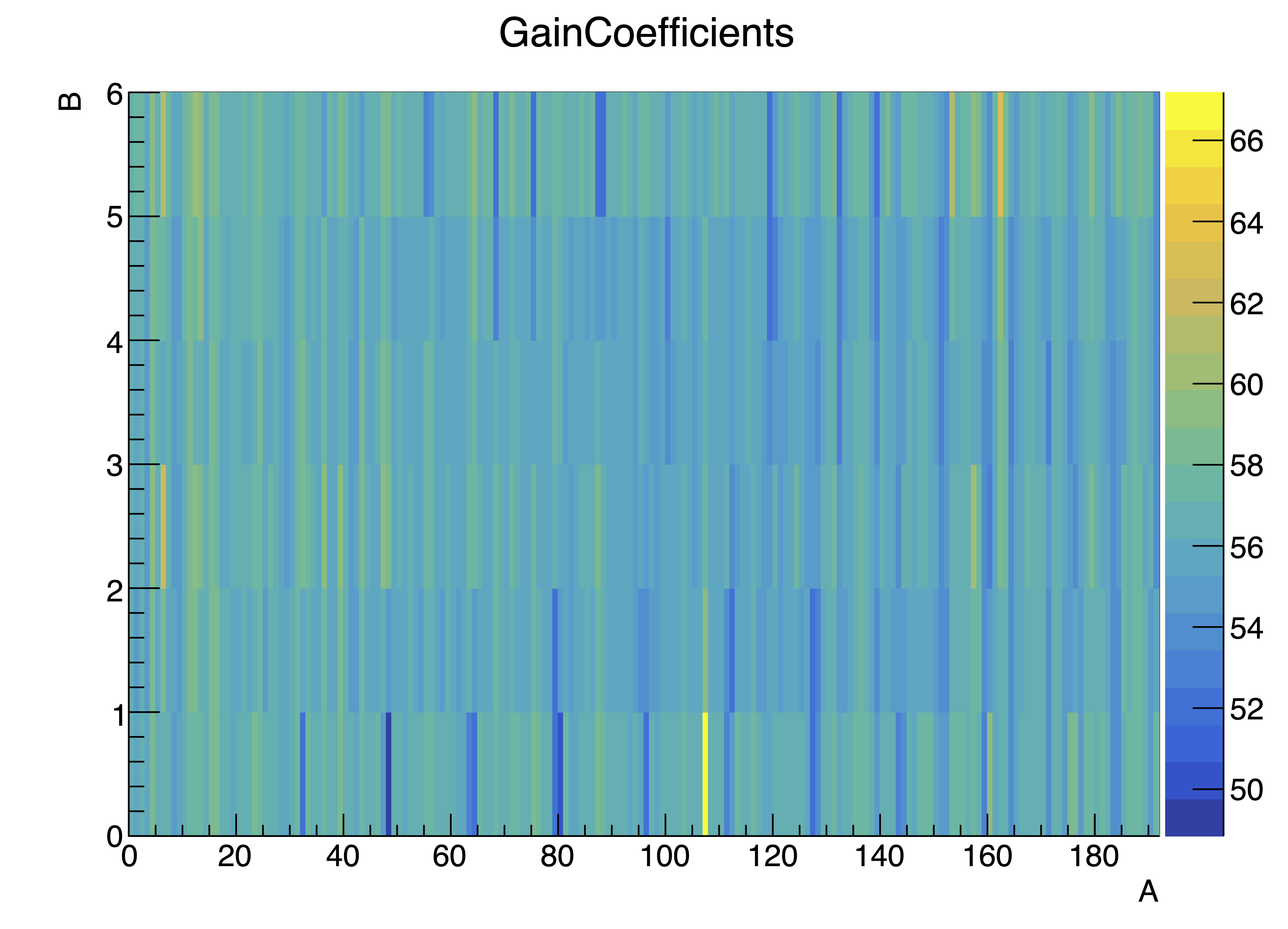

TH2D *gainHist = (TH2D*)inFile -> Get("gainMap"); // 增益系数热力图

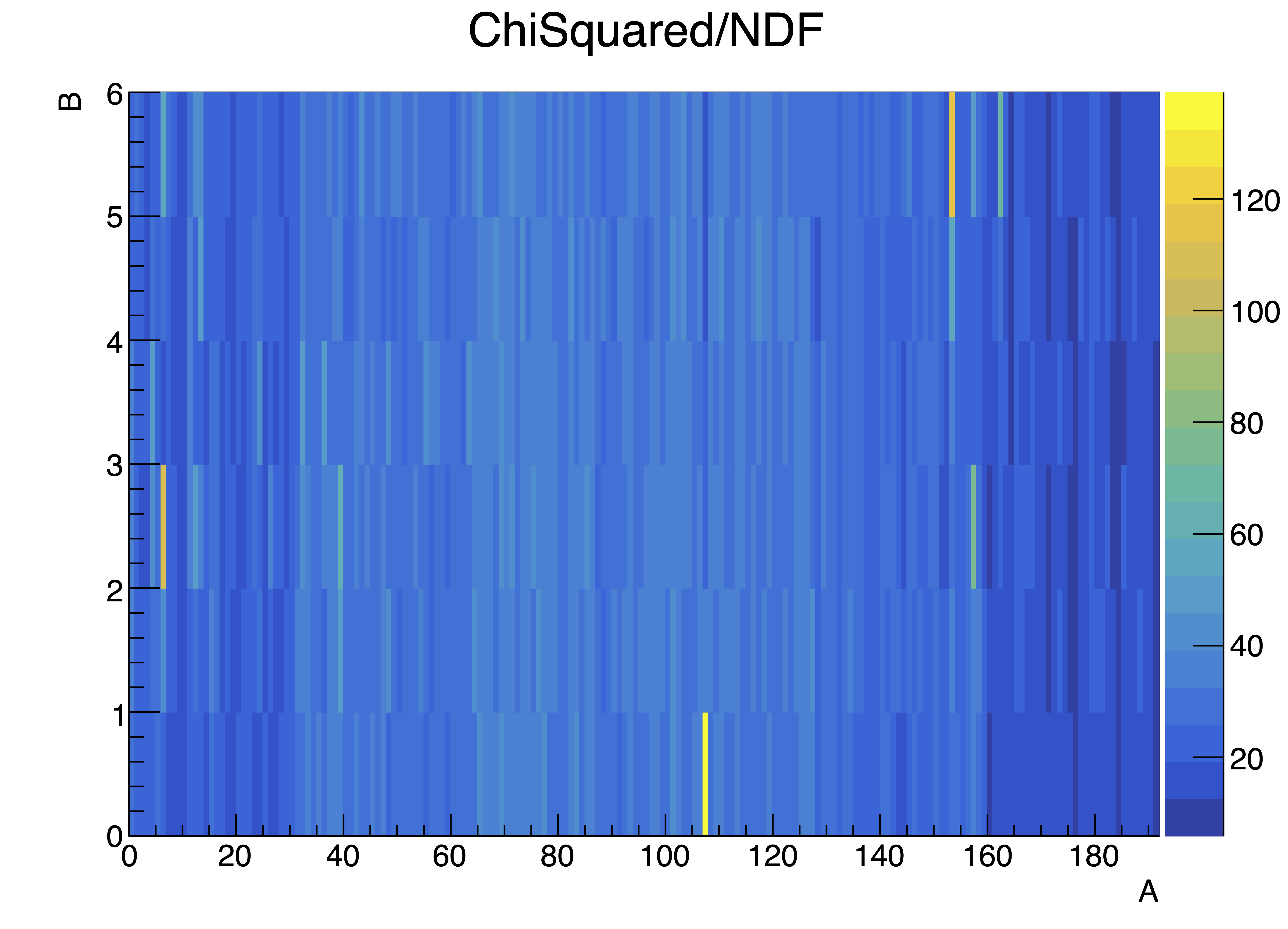

TH2D *chi2Hist = (TH2D*)inFile -> Get("chi2Map"); // 卡方分布热力图
TH1D *mergedHistFromFile = (TH1D*)inFile -> Get("merged_hist"); // 合并后的直方图
TF1 *mergedFitFromFile = (TF1*)inFile -> Get("mergedFit"); // 拟合后的合并后的直方图
TH1D *gainHist1D = new TH1D("gainHist1D", "Gain Coefficients; Detector ID; Gain Coefficient", 1152, 1, 1153); // 1152 bin的直方图，用于绘制增益系数
TCanvas *c1 = new TCanvas("c1", "Gain Coefficient Heatmap", 800, 600);
gStyle -> SetOptStat(0);
gainHist -> Draw("COLZ");
c1 -> SaveAs("gain_heatmap.pdf");
TCanvas *c2 = new TCanvas("c2", "ChiSquared/NDF Heatmap", 800, 600);
gStyle -> SetOptStat(0);
chi2Hist -> Draw("COLZ");
c2 -> SaveAs("chi2Ndf_heatmap.pdf");

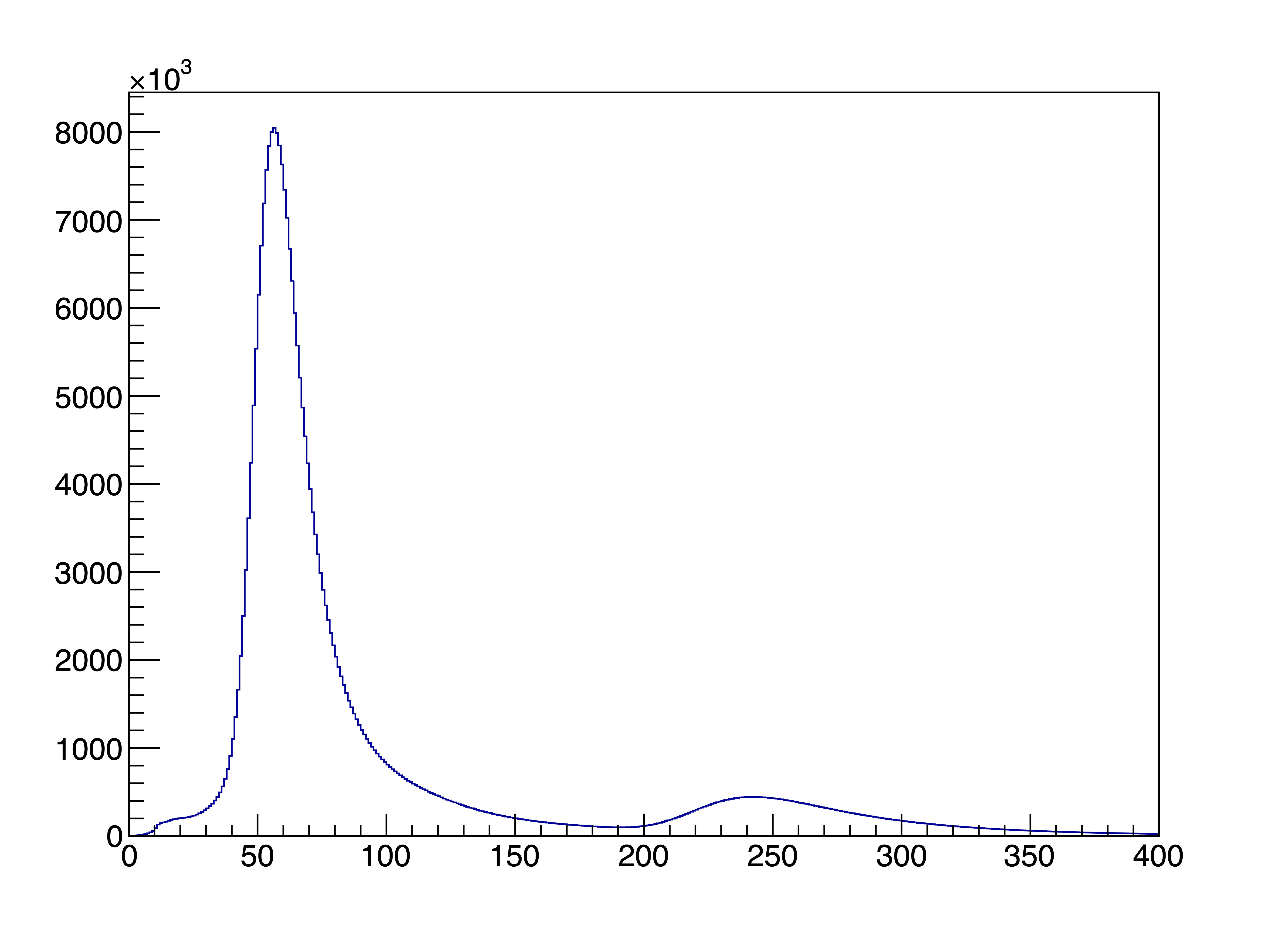

TCanvas *c3 = new TCanvas("c3", "Merged Spectrum", 800, 600);
mergedHistFromFile -> Draw("HIST");
// 这里的 merged_spectrum 实际上是对每个原始直方图进行郎道卷积高斯函数拟合，得到MPV，计算平均MPV后以 correctionFactor = targetMPV / gainCoefficient 作为校正因子对齐得到的合并的直方图
c3 -> SaveAs("merged_spectrum.pdf");

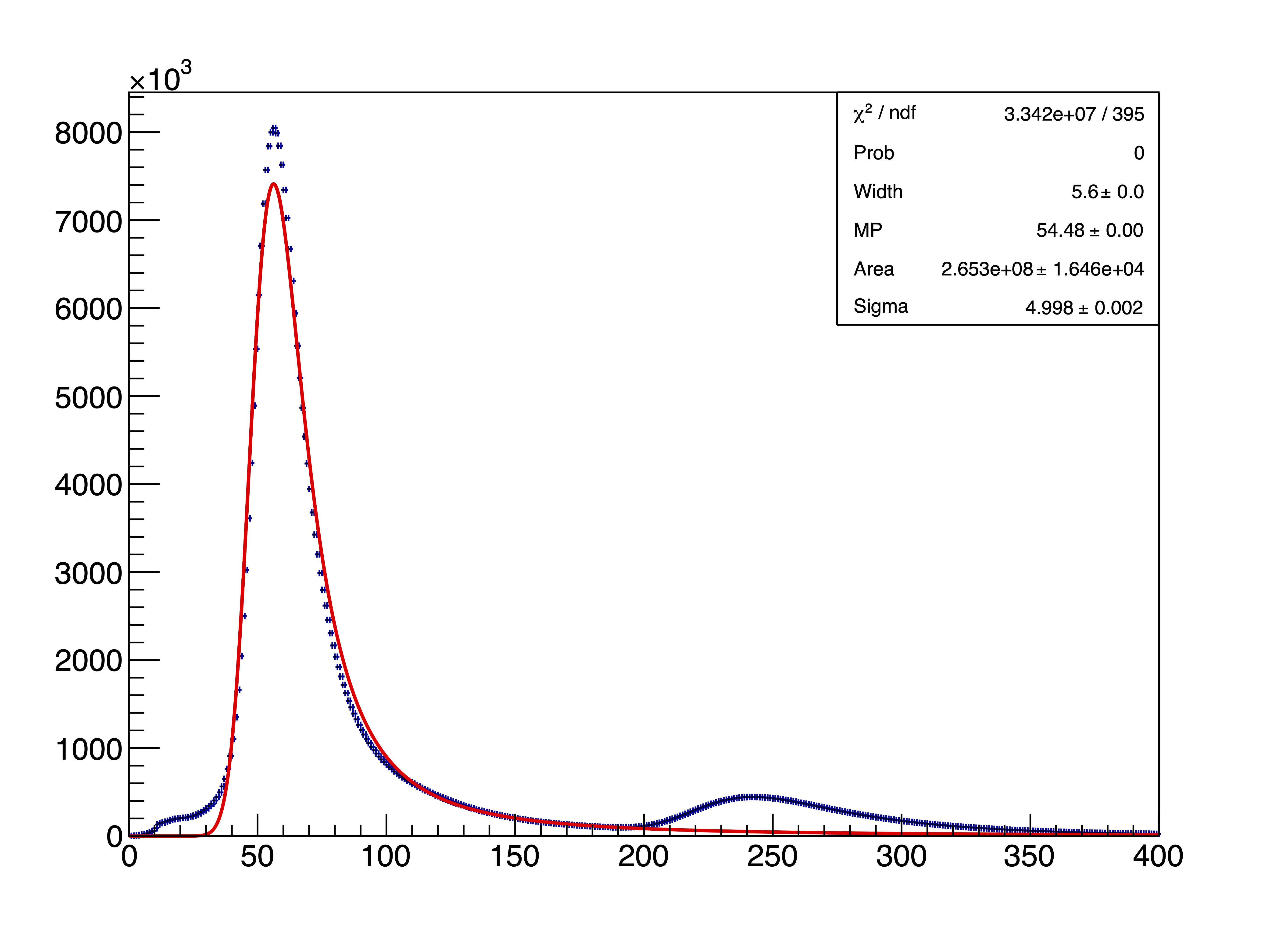

TCanvas *c4 = new TCanvas("c4", "Fitted Merged Spectrum", 800, 600);
gStyle -> SetOptFit(1111);
mergedHistFromFile -> Draw("E1Y0");
mergedFitFromFile -> SetLineColor(kRed);
mergedFitFromFile -> Draw("SAME");
gPad -> Update();
TPaveStats *stats = (TPaveStats*)mergedHistFromFile -> FindObject("stats");
if (stats){
stats -> SetX1NDC(0.65);
stats -> SetY1NDC(0.65);
stats -> SetX2NDC(0.90);
stats -> SetY2NDC(0.90);
stats -> SetBorderSize(1);
stats -> AddText(TString::Format("Chi2/NDF = %.2f", mergedChi2NDF));
}
c4 -> SaveAs("fitted_merged_spectrum.pdf");

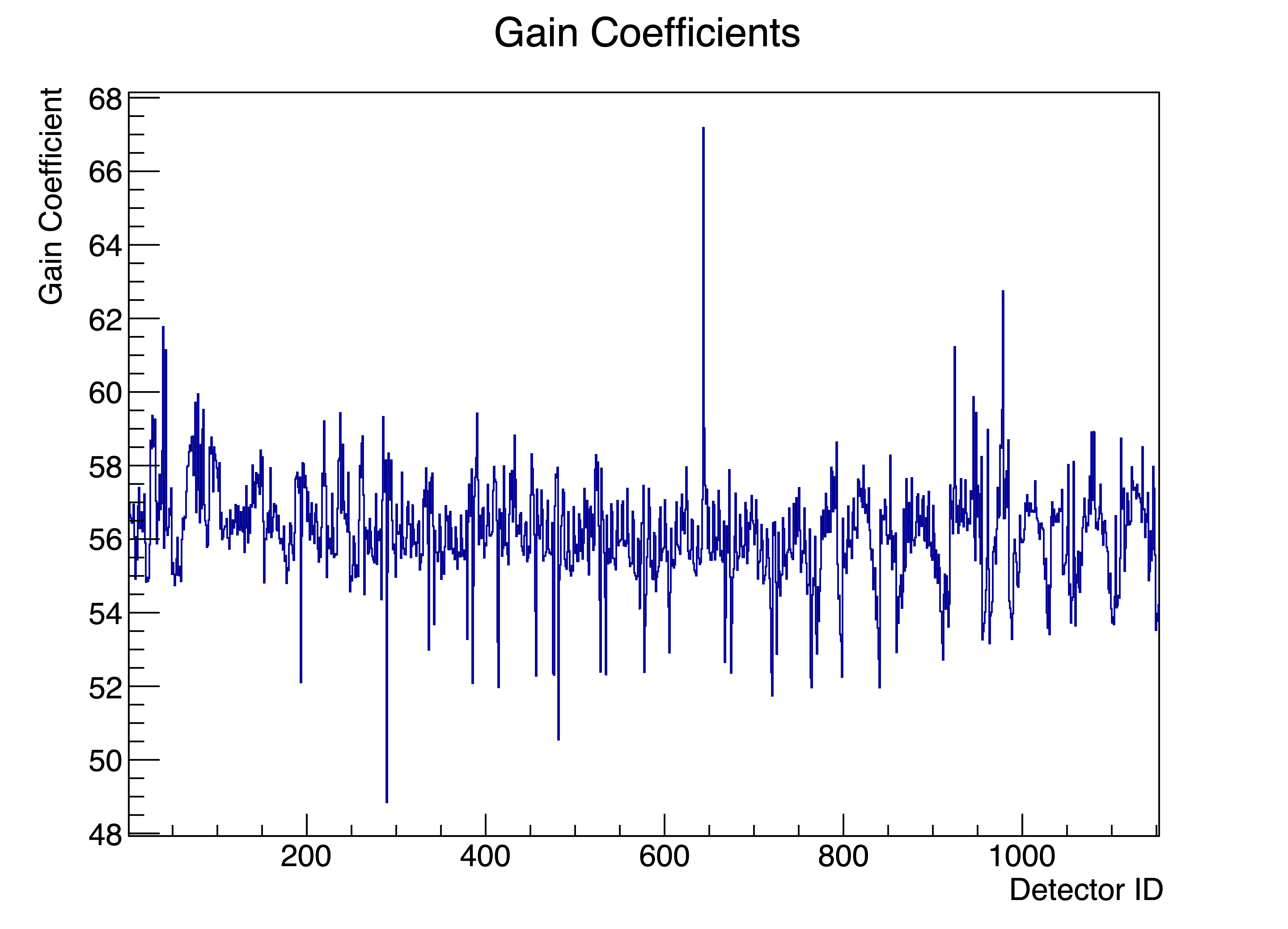

TCanvas *c5 = new TCanvas("c5", "Gain Coefficients 2D plot", 800, 600);
for (int i = 0; i < 1152; ++i){
gainHist1D -> SetBinContent(i+1, mpvList[i]);
}
gainHist1D -> Draw("HIST");
c5 -> SaveAs("gain_coefficients_1D_plot.pdf");
inFile -> Close(0);
c1 -> Close(0);
c2 -> Close(0);
c3 -> Close(0);
c4 -> Close(0);
c5 -> Close(0);
auto end = std::chrono::high_resolution_clock::now();
std::chrono::duration<double> elapsed = end - start;
std::cout << "Optimal fit range: [" << bestLefFit << ", " << bestRiFit << "], with Chi2/NDF:" << mergedChi2NDF << "." << std::endl;
std::cout << "Attention: All Chi2 / NDF are in the range of [45, 80]." << std::endl;
std::cout << "Total execution time: " << elapsed.count() << " seconds." << std::endl;
}
|
